Tool Bit Holders

Tool Bit Holders

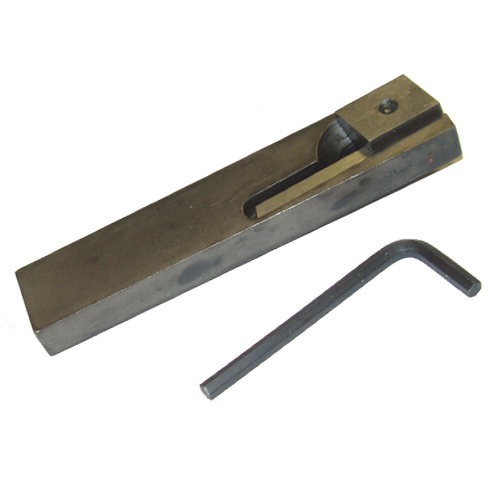

• Eclipse tool bit holders are designed to optimise toolbit performance
• Eclipse holders clamp the tool bit securely and rigidly
• Supplied complete with an Allen key and one Eclipse H5 tool bit Holders with the suffix ‘SL’ are designed for use in American type (slotted pillar) tool posts. Holders with suffix ‘S’ are of more robust construction and are designed for use on English type lathes with flat tool rests, or 4 way turret tool posts.

Product Specifications:
Model No.LengthCapacityShank Size
524SL130mm (5.1/8")5-7mm (3/16-1/4")11.1 x 25.4mm (7/16 x 1")
534SL155mm (6")8-10mm (5/16-3/8")15.9 x 31.8mm (5/8 x 1.1/4")
544SL230mm (9")10-12.7mm (3/8-1/2")22.2 x 38mm (7/8 x 1.1/2")
523S125mm (5')5-7mm (3/16-1/4")14.3 x 19mm (9/16 x 3/4")
533S155mm (6")8-10mm (5/16-3/8")17.5 x 25.4mm (11/16 x 1")
